Description

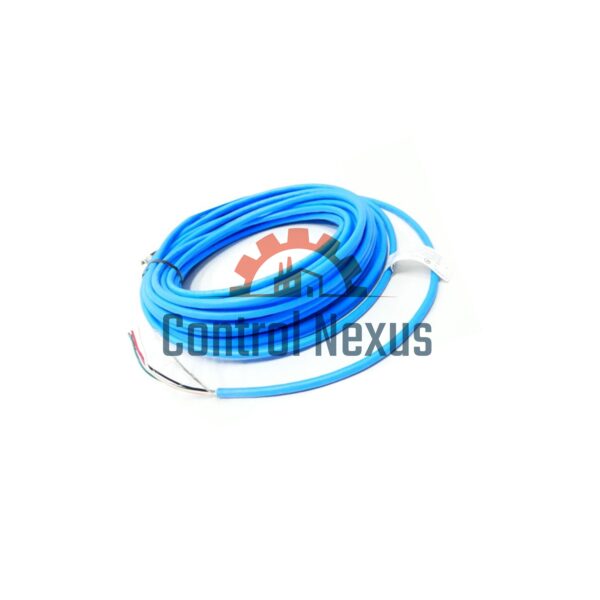

200152-04-CN Cable Specifications

  • Model Number: 200152 (‑04 = 4.0 meters length; ‑CN = Country Specific coupling nut)
  • Length: 4.0 meters
  • Conductors: 4 × 22 AWG with braided shield (85 % coverage minimum) and drain wire
  • Outer Jacket: PVC, 1.5 mm wall thickness
  • Coupling Nuts: Nickel‑plated, torque‑tested to 2.5 Nm
  • Minimum Bend Radius: 73.7 mm (2.9 in)

Environmental Performance

  • Operating Range: –20 ºC to +100 ºC (–4 ºF to +212 ºF)
  • Storage Range: –55 ºC to +121 ºC (–67 ºF to +250 ºF)
  • Flex Life: Tested to 500 000 flex cycles at 0 ºC without performance loss
  • Sealing: IP67 when mated, with DC4 insulating compound added

Download PDF file here:200150, 200155 and 200157 Accelerometers Datasheet

Additional information

Weight0.5 kg
Dimensions24 × 3 × 24 cm
