200350-00-00-01 Bently Nevada – Accelerometer

Description

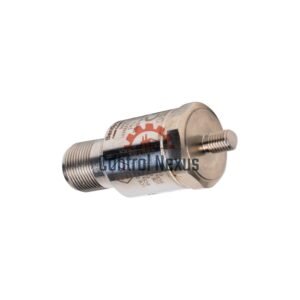

Bently Nevada 200350-00-00-01 Accelerometer

Core Specifications:
Sensitivity: 100 mV/g ± 20% (10.2 mV/m/s² ± 20%)
Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz)
Measurement Range: ±50 g
Mounted Resonant Frequency: 1500 kcpm (25 kHz)
Broadband Noise: 350 μg (3,434 μm/s²) in 1–10 kHz band

Electrical Details:
Output Bias Voltage: 8 to 12 VDC
Excitation Voltage: 18 to 28 VDC
Constant Current Excitation: 2 to 20 mA
Output Impedance: Less than 150 Ω
Discharge Time Constant: ≥ 0.3 seconds
Electrical Isolation: Greater than 10⁸ Ω

Environmental Ratings:
Operating Temperature: -65 °F to +250 °F (-54 °C to +121 °C)
Shock Survivability: 5,000 g peak
Relative Humidity: 100% condensing, non-submerged
Enclosure Protection: IP68 rated

Download PDF file here:200350 and 200355 Accelerometers
