2097-V32PR2-LM 100% Original Brand New Allen Bradley

Description

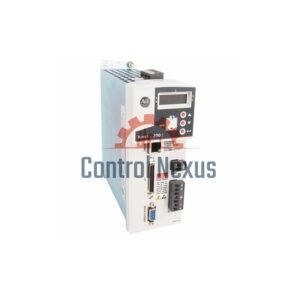

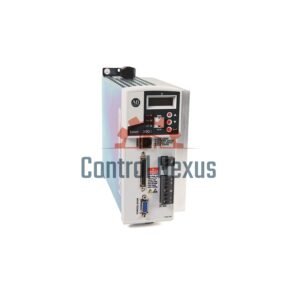

Allen-Bradley 2097-V32PR2-LM

Key Specifications

• Input Voltage: 80–264V AC (240V nominal)
• Input Frequency: 48–62 Hz
• Continuous Output Current: 4.0 A (rms) / 5.7 A (0-peak)
• Peak Output Current: 12.0 A (rms) / 17.0 A (0-peak)
• Power Output: 800 W (0.8 kW)
• Power Dissipation: 39 W
• Nominal Input Current: 8.6 A
• Max Inrush Current: 2.3 A (at 240V)

Features

• Safe Torque-Off (STO)
• Integrated EMC Line Filter
• RJ-45 Ethernet/IP Communication
• Diagnostic LED Display
• Backup Control Power: 20–26V DC, 500 mA (nom), 30 A (max inrush)

Protections & Ratings

• Shunt Activation: ON at 390V DC, OFF at 375V DC
• Overvoltage Protection: 430V DC
• Short-Circuit Rating: 100,000 A (RMS symmetrical)

Mechanical & Environmental

• Dimensions: 9.37 × 7.29 × 3.08 in (238 × 185.1 × 78.2 mm)
• Weight: 3.7 lbs (1.7 kg)
• Operating Temp: 0–40°C
• Humidity: 5–95% (non-condensing)
• Clearance: 3 mm (sides), 25 mm (top & bottom)

Download PDF file here：2097-um001_-en-p
