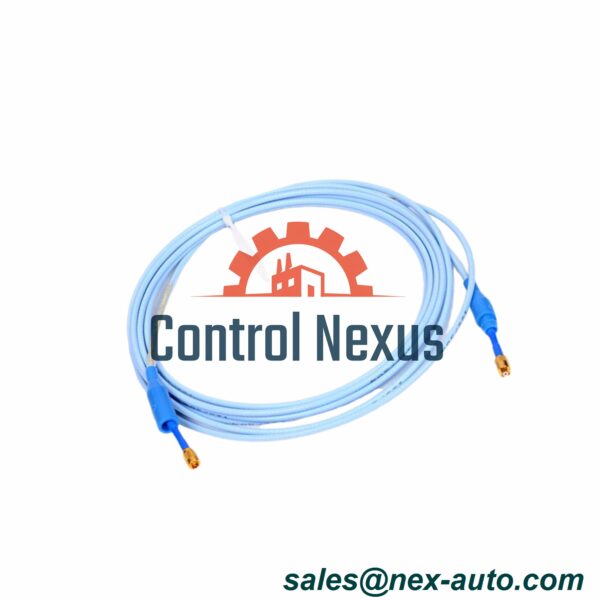

3300 NSv Extension Cable | Bently Nevada 330930-065-03-CN

Description

Manufacturer: Bently Nevada

Product Number: 330930-065-03-CN

Type: 3300 NSv Extension Cable

Made in: U.S.A

Cable Length: 6.5 meters (21.3 feet)

Connector & Cable Option: Without stainless steel armor, with connector protector

Material: 75 Ω coaxial, FEP insulated

Operating Temperature: -51°C to +177°C (-60°F to +351°F)

Shipping Weight: 1.5 Kg

Note: Total cable length (extension + probe) must match Proximitor Sensor length.

Key Electrical Data:

• Center conductor resistance: 0.220 Ω/m (0.067 Ω/ft)
• Shield resistance: 0.066 Ω/m (0.020 Ω/ft)
• Capacitance: 69.9 pF/m (21.3 pF/ft)

Field Wiring: Use shielded triad cable 0.2–1.5 mm² (16–24 AWG). Max length: 305 m (1,000 ft).

Mechanical Specs:

• Linear range: 0.25 to 1.75 mm (10 to 70 mils)
• Recommended gap: 1.0 mm (40 mils)
• Tensile strength: 220 N (50 lbs)
• Connector: Gold-plated brass

Optional Armor: Flexible stainless steel (AISI 302) with/without FEP jacket available separately.

Warranty: 1 year

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
