3300 NSv Probe – Bently Nevada – 330903-00-02-05-02-05

Description

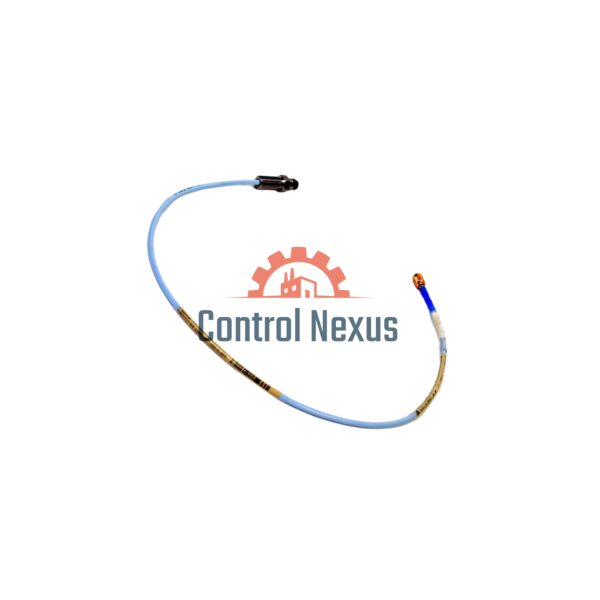

Bently Nevada 3300 NSv Proximity Probe – Simple, Strong Vibration Sensor

What It Does

The Bently Nevada 3300 NSv Proximity Probe checks machine vibration and position. It resists chemicals better than old 3300 RAM probes, perfect for tough jobs like process compressors.

Model Breakdown: 330903-00-02-05-02-05

Base model: 330903 (M8X1 thread, no armor)
Unthreaded length: -00 (0mm)
Case length: -02 (20mm)
Total length: -05 (0.5m / 20in)
Connector/cable: -02 (small coaxial ClickLoc + standard cable)
Certificates: -05 (multiple approvals)

Key Tech Specs

Range: 0.25-1.75mm (10-70 mils). Best gap: 1.0mm (40 mils)
Accuracy: ±0.06mm (±2.3 mils) (error from straight line)
Signal output: 7.87V/mm (200mV/mil) (±12.5/-20% range)
Temp range: -52°C to +177°C (-62°F to +351°F) (works & stores here)
Cable resistance: 4.0±0.5Ω (probe), 0.220Ω/m (center wire)
Frequency: 0-10kHz (with up to 305m wiring)

How to Install

Tighten: By hand. Max probe torque: 0.56N•m (5in•lb). Max connector torque: 7.3N•m (65in•lb)
Bend: At least 25.4mm (1in) (with/without armor)
Wires: Use 3-wire shielded cable (max 305m long)

Works With

Old 3300 RAM probes (same parts and power)
3000-series 190 probes (better side view at same gap)

Package & Warranty

Condition: New, factory-packed.
Includes: Probe, cable, user guide.
Warranty: 1 year from purchase date.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
