3300 NSv Probe – Bently Nevada – 330903-00-02-10-12-05

Description

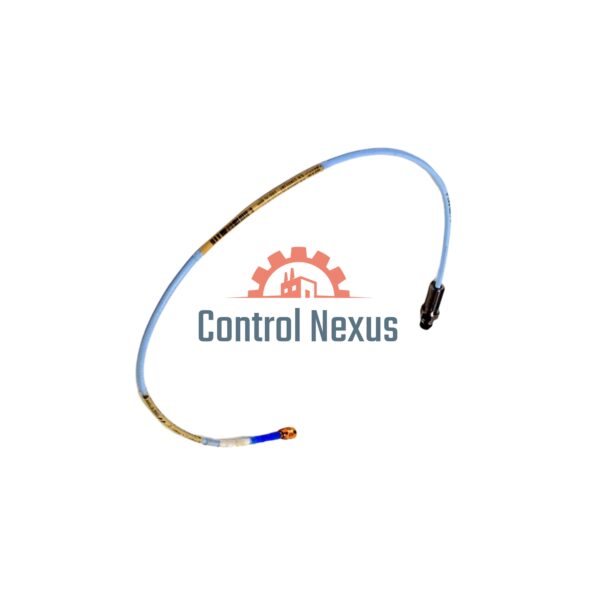

3300 NSv Proximity Probe – 330903-00-02-10-12-05

Suffix Breakdown

-00 = 0 mm unthreaded section

-02 = 20 mm overall case length

-10 = 1.0 m total cable length

-12 = ClickLoc miniature coax with FluidLoc cable

-05 = Multiple agency approvals

Technical Data

Brand: Bently Nevada

Model: 3300 NSv Probe

Part Number: 330903-00-02-10-12-05

Thread: M8×1

Cable: 75 Ω FEP coax, 1 m FluidLoc

DC Resistance: 4.2 Ω ± 0.5

Operating Temp: −52 °C to +177 °C

Core Specifications

Linear Range: 0.25–1.75 mm

Recommended Gap: 1.0 mm

Scale Factor: 7.87 V/mm (+12.5%/−20%)

Frequency Response: 0–10 kHz up to 305 m

Output Voltage: −1 to −13 Vdc

Target Diameter: ≥ 13 mm for optimal accuracy

Installation

Hand‑tighten; max torque 0.56 N·m (5 in·lb)

Use 16–24 AWG shielded triad cable

Maintain bend radius ≥ 25 mm

Max field wiring length: 305 m

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
