3300 NSv Probe – Bently Nevada – 330903-00-03-10-02-00

Description

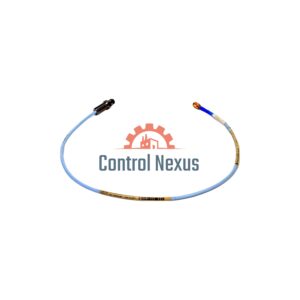

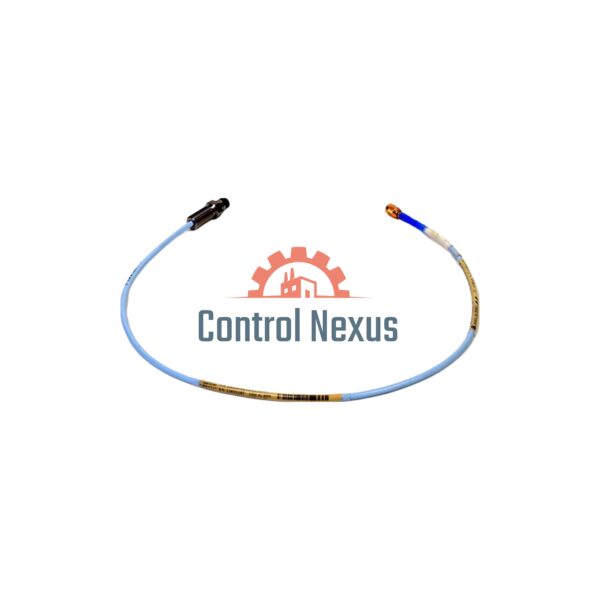

3300 NSv Proximity Probe – Bently Nevada

Technical Data

• Brand: Bently Nevada
• Model: 330903‑00‑03‑10‑02‑00
• Range: 0.25–1.75 mm (10–70 mils)
• Accuracy: ±0.06 mm (±2.3 mils DSL)
• Output Signal: –1 to –13 Vdc, 7.87 V/mm ±12.5%
• Frequency: 0–10 kHz (up to 305 m cable)
• Temperature: –52 °C to +177 °C
• Connector: Miniature coaxial ClickLoc
• Cable: 10 m standard, 75 Ω FEP
• Warranty: 12‑month factory

Model Suffix Breakdown

• Unthreaded Length (‑00): 0 mm
• Case Length (‑03): 30 mm
• Total Length (‑10): 10 m cable
• Connector/Cable (‑02): ClickLoc coaxial

Installation Guide

• Use three‑conductor shielded triad cable (16–24 AWG).
• Set gap at 1.0 mm for best linearity.
• Finger‑tight torque; max 0.56 N·m on probe.
• Max wiring 305 m to monitor.

Compatibility

Plug‑and‑play with all 3300 XL NSv monitors and previous 3300 RAM systems. Interchangeable without signal loss.

Certifications

• RoHS compliant
• CE marked
• UL listed

Packing List

• 3300 NSv probe in factory box
• 10 m ClickLoc cable attached
• Viton O‑ring seal
• Instruction sheet
