3300 NSv Probe – Bently Nevada – 330903-00-04-10-02-00

Description

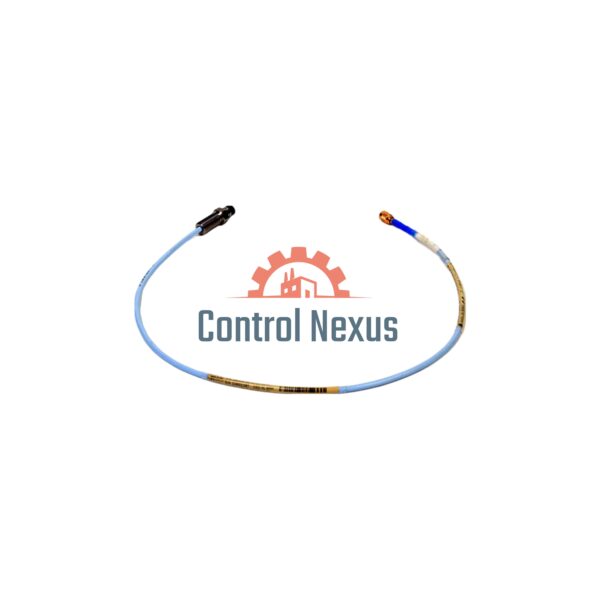

3300 NSv Proximity Probe – Model 330903‑00‑04‑10‑02‑00

Technical Data

• Brand: Bently Nevada
• Model: 3300 NSv Proximity Probe
• Part Number: 330903‑00‑04‑10‑02‑00
• Measurement Range: 0.25–1.75 mm (10–70 mils)
• Linear Range: 1.5 mm (60 mils)
• Scale Factor: 7.87 V/mm ±20%
• Frequency Response: 0–10 kHz (with ≤305 m field wiring)
• Output Signal: −1 to −13 Vdc
• Accuracy (DSL): ±0.06 mm (±2.3 mils)
• Operating Temp: −52 °C to +177 °C
• Connector & Cable: Miniature coaxial ClickLoc, standard cable (1.0 m)
• Warranty: 12 months factory

Model Suffix Explanation

• 330903: Base probe code
• -00: Unthreaded length 0 mm
• -04: Case length 40 mm
• -10: Cable length 1.0 m
• -02: ClickLoc connector type
• -00: No agency approval required

Installation Guide

• Use M8×1 thread, torque ≤0.56 N·m.
• Maintain gap at 1.0 mm from target.
• Use ≤305 m shielded cable, 16–24 AWG.
• Avoid sharp bends: min radius 25.4 mm.

Compatibility

Fully interchange with 3300 RAM series. Works with all 3300 XL monitors.

Certifications

• CE
• UL
• ATEX (on request)

Packing List & Warranty

• 1 × Probe (330903‑00‑04‑10‑02‑00)
• 1 × Quick‑start guide
• 1 × Factory report
• Warranty: 12‑month limited factory

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
