3300 NSv Probe – Bently Nevada 330903-00-05-05-02-05

Description

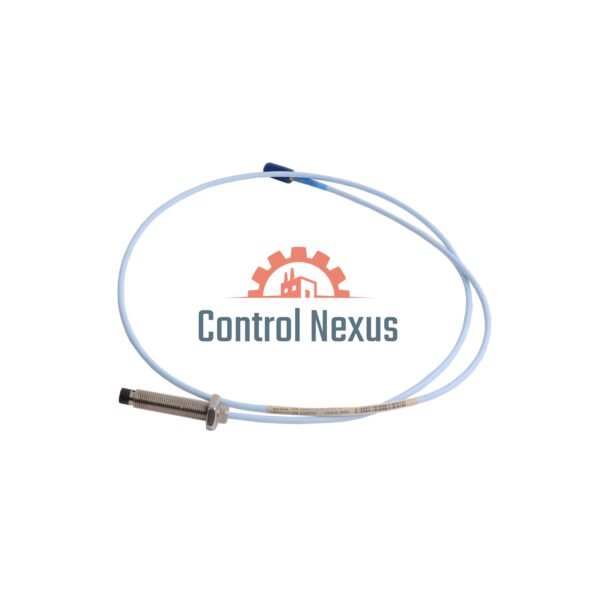

Bently Nevada 330903-00-05-05-02-05 – 3300 NSv Proximity Probe

Technical Highlights

Brand: Bently Nevada
Model: 330903-00-05-05-02-05
Series: 3300 NSv
Thread Type: M8x1
Unthreaded Length: 0 mm
Overall Case Length: 50 mm
Cable Length: 0.5 meter (20 in)
Connector Type: Miniature coaxial with ClickLoc
Cable Type: 75 Ω coaxial, FEP insulated
Agency Approvals: Multiple (Suffix -05)

Performance & Signal

Linear Range: 1.5 mm (60 mils)
Recommended Gap: 1.0 mm (40 mils)
Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
Frequency Response: 0–10 kHz ±3 dB
DSL: Less than ±0.06 mm (±2.3 mils)
DC Resistance: 4.0 ± 0.5 Ω at 0.5 m
Capacitance: 69.9 pF/m (typical)

Installation Guidelines

Torque (Finger Tight): Recommended
Max Torque: 0.56 N·m (5 in·lb)
Minimum Bend Radius: 25.4 mm (1.0 in)
Max Thread Engagement: 12 mm
Probe Case Material: AISI 304 Stainless Steel
Tip Material: Polyphenylene sulfide (PPS)

Electrical & Environmental

Operating Temperature: -52°C to +177°C (-62°F to +351°F)
Storage Temperature: -52°C to +177°C (-62°F to +351°F)
Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG) recommended shielded triad
Maximum Cable Distance: 305 m (1,000 ft) from Proximitor to monitor

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
