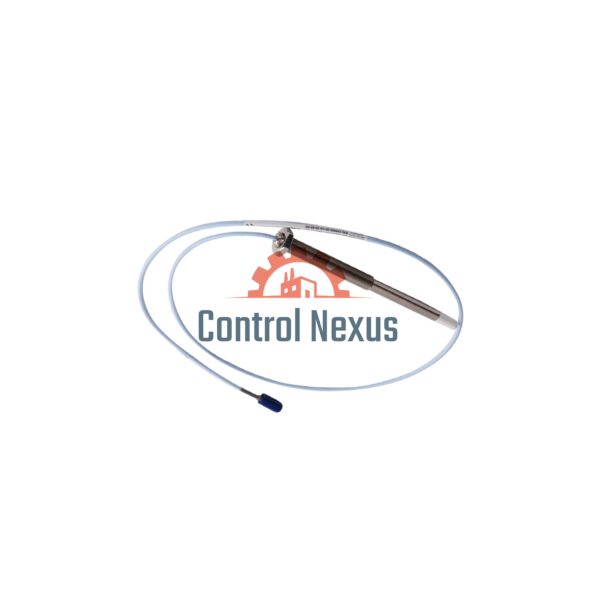

330901-00-16-05-02-CN Bently Nevada – 3300 NSv Probe

Description

330901-00-16-05-02-CN 3300 NSv Proximity Probes

Model Code Breakdown

330901: Base 3300 NSv Probe with 1/4-28 UNF thread (no armor)
00: Unthreaded length – 0.0 inches
16: Overall case length – 1.6 inches
05: Total probe length – 0.5 meters (20 inches)
02: Connector type – Mini coaxial ClickLoc with standard cable
CN: Country-specific approval included

Key Features

Materials:

Case: AISI 304 stainless steel (resists rust and wear)
Tip: Polyphenylene sulfide (PPS) (works safely up to 177°C)
Cable: 75 Ω coaxial with FEP insulation (available in 0.5m, 1m, 5m, or 7m lengths; cable diameter: 3mm)

Electrical Specs:

DC resistance (0.5m length): 4.0 ± 0.5 ohms (center to outer conductor)
Frequency response: 0-10 kHz (captures fast machine changes)
Sensitivity: 200 mV/mil (gives clear, accurate signals)

Durability:

Max torque: 7.3 N•m (65 in•lb); Suggested torque: 5.1 N•m (45 in•lb)
Thread fit: Up to 0.375 inches (1/4-28 thread)
Weight: 14-150g (0.5-5.3 oz) (light for easy setup)

Environment:

Temp range: -52°C to 177°C (-62°F to 351°F) (works in hot and cold places)
Pressure seal: Viton O-ring (handles pressure differences between tip and case)
Note: Staying below -34°C (-30°F) for long may damage the seal
Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
