330903-00-03-10-12-05 Bently Nevada New 3300 NSv Probe

Description

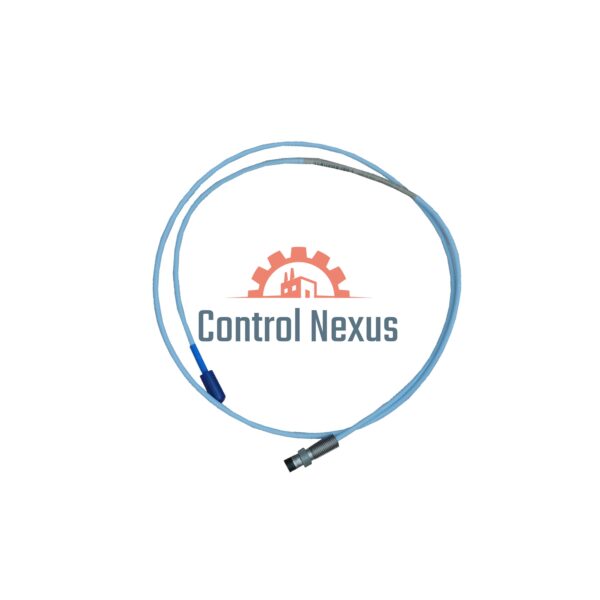

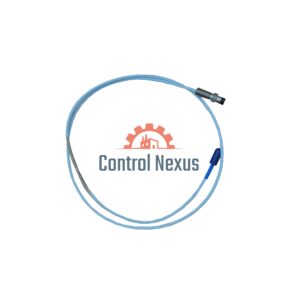

3300 NSv Proximity Probe — M8×1 Thread, 1 m FluidLoc Cable

Product Snapshot

Premium Bently Nevada NSv probe engineered for aggressive compressor settings. PPS sensing tip and 304 SS housing withstand chemical attack and wear.

Core Specifications

• Brand: Bently Nevada
• Model: 330903-00-03-10-12-05
• Suffix parts:
  00 mm unthreaded,
  03 mm case,
  10 → 1 m cable,
  12 → FluidLoc ClickLoc,
  05 → multi‑approval
• Measuring span: 0.25–1.75 mm (10–70 mils)
• Scale factor: 7.87 V/mm (200 mV/mil)
• Linear error: < ±2.3 mils DSL
• Bandwidth: 0–10 kHz (up to 305 m cable)
• Working temp: –52 °C to +177 °C

Mounting Tips

Insert into M8×1 port. Hand‑tight, then torque ≤ 0.56 N·m. Keep cable bend radius ≥ 25 mm. Use three‑conductor shielded triad.

System Fit

Plug‑and‑play for 3300 RAM and 3000‑series 190 probes. Compatible with 75 Ω FEP cables.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
