330904-08-15-05-02-05 | Bently Nevada | New NSv Probe

Description

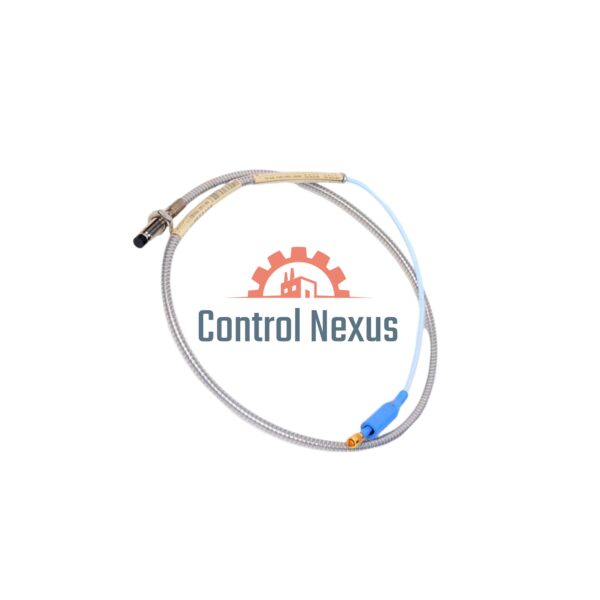

Bently Nevada 330904-08-15-05-02-05 | 3300 NSv Proximity Probe

The 330904-08-15-05-02-05 is a factory-sealed 3300 NSv Probe by Bently Nevada. It excels in harsh settings, offering precise displacement readings with durable armor and reliable standard cable.

Suffix Information

330904 – 3300 NSv probe, armored M8×1 thread
08 – 3/8-24 to 1/2 NPT, 1″ hex stud option
15 – 150 mm case length
05 – 0.5 m cable length
02 – ClickLoc connector, standard cable
05 – CSA, ATEX, IECEx approved

Core Specs

Range: 0.25–1.75 mm
Output: 7.87 V/mm ±20%
Accuracy: ±0.06 mm max
Bandwidth: DC–10 kHz (305 m cable)
Temp: –52 °C to +177 °C
Tip: PPS
Body: AISI 304 SST
Cable: 75 Ω FEP, 0.5 m
Bend Radius: 25.4 mm

Quick Install

– Torque: finger secure to 0.56 N·m
– Thread depth: up to 12 mm
– Target min 13 mm dia
– Swap-in for 3300 RAM probes

Benefits & Fit

✔ Legacy 3300 RAM compatibility
✔ Strong chemical resistance
✔ Better side-view signal than 3000-series

Certs

✔ CSA
✔ ATEX
✔ IECEx

Box & Warranty

New, factory packed
Warranty: 12 months
Includes probe, cable, protector, manual

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
