Allen-Bradley 22D-D024H204 Drives 100% Genuine New

Description

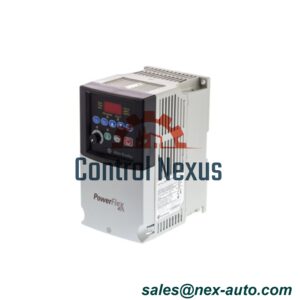

Allen-Bradley 22D-D024H204 PowerFlex 40P Adjustable Frequency Drive

Main Features

Model 22D-D024H204 is a compact, high-performance AC drive designed for industrial motor speed control. It runs on 480V AC (3-phase) power and delivers up to 15 HP or 11 kW with a current of 24A.

Quick Specifications

– Voltage: 480V AC
– Output Power: 15 HP / 11 kW
– Current: 24 A
– Frequency: 48–63 Hz
– Frame Size: C
– Mounting: Plate Mount
– Enclosure: IP20, Open Type
– Cooling: Air-cooled

Easy Installation

Mount vertically on a clean, dry surface. Use with an AC line reactor or DC bus inductor. Suitable for panel or DIN rail installation. Keep space around the drive for airflow (50°C max with spacing, 40°C without).

Control & Connectivity

Comes with a built-in keypad, 4-digit display, and 10 LEDs. Supports RS485 communication and DF1 protocol. Works with NEMA 1 handheld or NEMA 4X remote keypads.

Download PDF file here:PowerFlex 4 and 40 AC Drives
