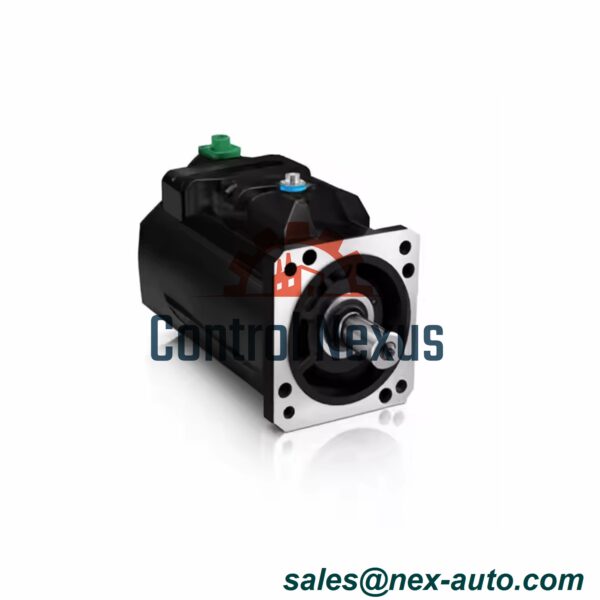

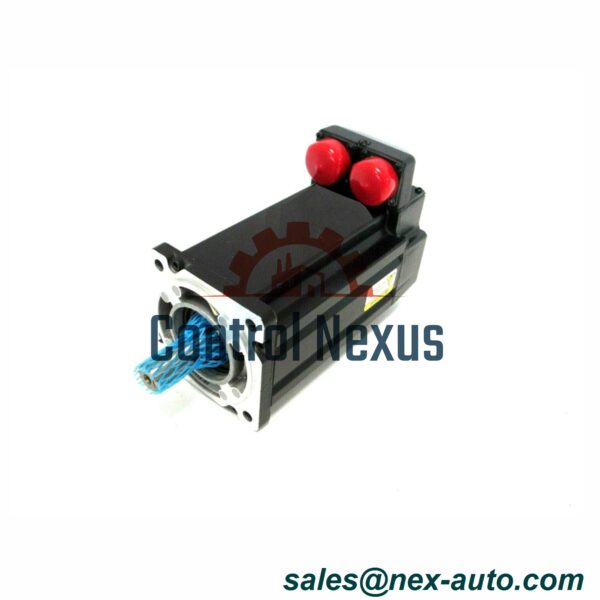

Allen-Bradley | MPL-A320P-MJ22AA Servo Motor

MP-Series MPL 240V AC Rotary Servo Motor

Engineered for precision and durability in industrial automation applications.

Core Specifications

• Power Configuration: 240V AC | Voltage Class: 200V AC
• Frame Design: 100mm compact frame with 2″ (50.8mm) magnetic stack length
• Peak Performance: 5000 RPM rated speed ±1% accuracy

Enhanced Technical Features

• Feedback System: 20-bit multi-turn encoder (1,048,576 counts/revolution)
• Thermal Capacity: Operational range -20°C to +80°C with 95% efficiency rating
• Mechanical Interface: IP65-rated bayonet connector (M23x1) facing shaft direction

Physical & Operational Data

• Torque Profile: 4.2Nm continuous | 8.5Nm peak (200ms)
• Bearing System: Dual angular contact bearings (6204ZZ/C3)
• Installation Ready: B5 flange mounting with 6xM5 mounting holes

Advanced Functionality

• Communication Protocol: EtherCAT compliance (CoE DS402)
• Inertia Matching: Rotor inertia 0.0021kg·m² ±5%
• Reliability: 50,000-hour MTBF at rated load

Weight & Compliance: 4.754kg | CE/RoHS certified
