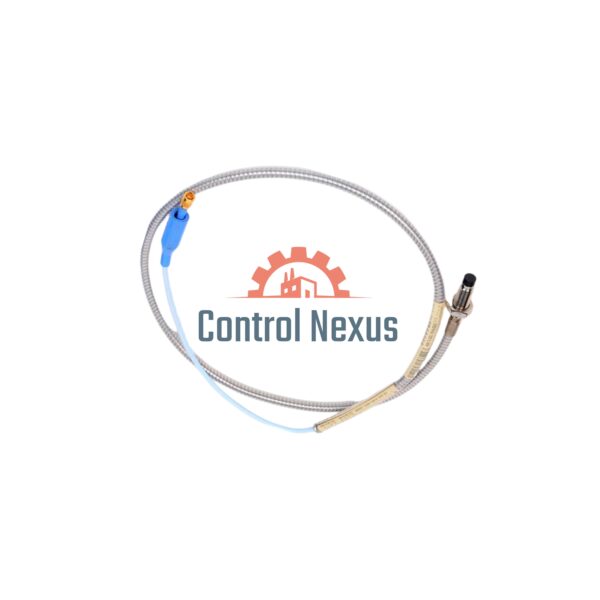

Bently Nevada 3300 NSv Proximity Probe – Model: 330904-08-15-50-12-05

Product Configuration Details:

• Model Number: 330904 – 3300 NSv Probe, M8X1 thread, with stainless steel armor
• Unthreaded Length Option: 08 – 80 mm
• Overall Case Length Option: 15 – 150 mm
• Total Cable Length Option: 50 – 5.0 meters (16.4 feet)
• Connector & Cable Type Option: 12 – Miniature coaxial ClickLoc connector, FluidLoc cable
• Agency Approval Option: 05 – Multiple Approvals

Performance Specifications:

• Probe DC Resistance (5.0 m length): 5.3 ± 0.7 Ω
• Extension Cable Resistance: Center Conductor 0.220 Ω/m, Shield 0.066 Ω/m
• Capacitance: 69.9 pF/m
• Recommended Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
• Max Field Wiring Length: 305 meters (1000 feet)

Measurement & Operating Range:

• Linear Range: 1.5 mm (60 mils)
• Recommended Gap Setting: 1.0 mm (40 mils)
• Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±12.5% / -20%
• Deviation from Best Fit Line: Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz, typical with full field wiring length

Physical Construction & Materials:

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 Stainless Steel (SST)
• Probe Cable: 75 Ω coaxial, FEP insulated
• Available Probe Lengths: 0.5, 1, 5, or 7 meters
• Minimum Bend Radius: 25.4 mm (1 inch)

Installation & Torque:

• Recommended Torque (Finger Tight)
• Maximum Torque: 0.56 N·m (5 in·lb)
• Case Thread Type: M8X1, Max Thread Engagement: 12 mm
• Connector-to-Connector Recommended Torque: 5.1 N·m (45 in·lb), Max: 7.3 N·m (65 in·lb)

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
