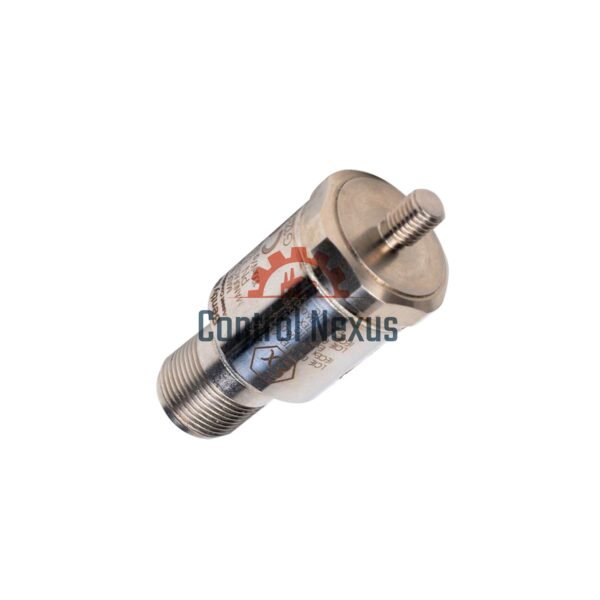

Bently Nevada | 200350-01-00-CN 200350 Accelerometer

Description

Manufacturer: Bently Nevada

Product Model: 200350-01-00-CN

Product Type: 200350 Accelerometers

Origin: Made in U.S.A

Certificate: Can provide Certificate Of Origin (COO)

Mounting Stud: 01 = ¼-28 to M6 x 1.00 Stainless Steel

Output Sensitivity: 100 mV/g ± 20% (equivalent to 10.2 mV/m/s² ± 20%)

Agency Approvals Option: CN = Country Specific

Hex Size: 11/16 inch (1.8 cm)

Height: 1.65 inch (4.24 cm)

Weight: 0.051 Kg

Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz) ±3 dB

Measurement Range: ±50 g

Transverse Sensitivity: ≤7%

Amplitude Linearity: ±1%

Mounted Resonant Frequency: 1500 kcpm (25 kHz)

Broadband Electrical Noise (1-10 kHz): 350 μg (3,434 μm/s²)

Output Bias Voltage: 8 to 12 VDC

Excitation Voltage: 18 to 28 VDC

Constant Current Excitation: 2 to 20 mA

Settling Time: 2.0 seconds (within 1% of bias)

Output Impedance: <150 ohms

Discharge Time Constant: ≥0.3 seconds

Electrical Isolation (Case): >10⁸ ohms

Operating Temperature: -65°F to +250°F (-54°C to +121°C)

Shock Survivability: 5,000 g pk

Relative Humidity: 100% condensing, non-submerged

Enclosure Rating: IP68

Mounting Thread: ¼-28 Female

Mounting Torque (Maximum): 2 to 5 ft-lb (2.7 to 6.8 N·m)

Sensing Element: Ceramic

Sensing Geometry: Shear

Housing Material: Stainless Steel

Sealing Method: Welded Hermetic

Electrical Connector: 2-Pin Mil-C-5015

Electrical Connection Position: Top

Shelf Life: 1 year

Download PDF file here:200350 and 200355 Accelerometers
