Bently Nevada – 3300 NSv Probe 330901-00-21-05-12-05

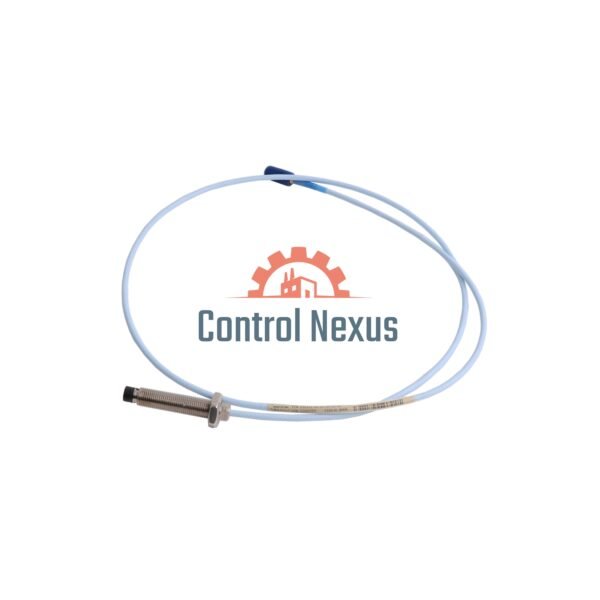

3300 NSv Proximity Probe Overview

The 330901‑00‑21‑05‑12‑05 probe reads shaft vibration.
It has no tip extension, a 2.1 in body, and a
0.5 m FluidLoc cable with ClickLoc connector.

Key Specs

• Model Parts:
  • 330901 – Base
  • 00 (0 in tip)
  • 21 (2.1 in body)
  • 05 (0.5 m cable)
  • 12 (FluidLoc cable)
  • 05 (Multiple approvals)
• Case: Stainless steel AISI 304
• Tip: PPS plastic
• Cable: 75 Ω coaxial, FEP jacket, 3.6 mm dia.
• Resistance: 4.0 ± 0.5 Ω at 0.5 m
• Max Torque: 7.3 N·m
  Use Torque: 5.1 N·m
• Temp Range: –52 °C to +177 °C
• Weight: 13 g per 10 cm cable
• Response: 1.3 µs
• Sensitivity: ± 12 µm
• Noise Floor: 0.55 µm
• MTBF: 110 000 hours
• Seal Pressure: up to 6.5 bar
• Approval: UL, CE, ATEX
• Warranty: 1 year
