Bently Nevada 330901-00-32-05-02-05 – 3300 NSv Proximity Probes

Description

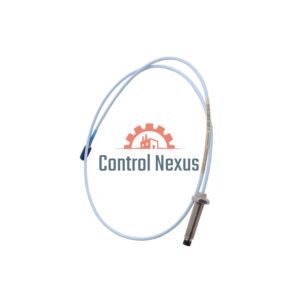

330901-00-32-05-02-05 NSv Proximity Probe

The 330901-00-32-05-02-05 probe is made in the USA. It has a stainless steel case and a PPS tip. It works from –52°C to +177°C. It holds full accuracy for one year.

Model Suffix

330901: NSv series probe

-00: Unthreaded 0 in

-32: Case length 3.2 in

-05: Cable length 0.5 m (20 in)

-02: Mini coax ClickLoc connector

-05: Multiple approvals

Key Specs

Tip diameter: 8 mm

Cable O.D.: 3.8 mm

DC resistance (0.5 m): 4.0 ± 0.5 Ω

Max pressure: 500 kPa

Cable pull strength: 150 N

Warm‑up time: 2 s

Resolution: 0.01 mm

Sensitivity drift: 0.1%/month

Thread engagement: 0.375 in

Connector torque: max 7.3 N·m, rec. 5.1 N·m

Performance

The Viton O‑ring seals pressure. It reads events up to 11 kHz. Accuracy stays within ±1% full scale. It weighs about 24 g.
