Bently Nevada | 330901-00-70-10-02-05 | 3300 NSv Proximity Probes

Description

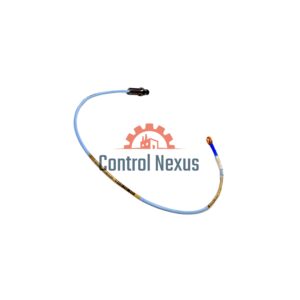

330901-00-70-10-02-05 NSv Proximity Probe

The 330901-00-70-10-02-05 probe is made in the USA. It has a stainless steel case and a PPS tip. It works from –52°C to +177°C. It holds full accuracy for one year.

Model Suffix

• 330901: NSv series probe
• -00: No unthreaded section, 0 in
• -70: Case length 7.0 in
• -10: Cable length 1.0 m (39 in)
• -02: Mini coax ClickLoc connector
• -05: Multiple approvals

Key Specs

• Tip diameter: 8 mm
• Cable outer diameter: 4 mm
• Cable: 75 Ω FEP coax, lengths 0.5, 1, 5, 7 m
• DC resistance (1 m): 4.2 ± 0.5 Ω
• Connector torque: max 7.3 N·m, rec. 5.1 N·m
• Max thread engagement: 0.375 in
• Min target size: 12 mm
• Bandwidth: 12 kHz
• Linearity: ± 0.5%
• Humidity: 95% RH non‑condensing
• Min bend radius: 30 mm

Performance

The built‑in Viton O‑ring seals pressure. It reads changes up to 12 kHz. Accuracy stays within ±1% full scale. Weight is about 30 g.
