Bently Nevada – 330903-00-02-10-01-00 NSv Proximity Probe

Description

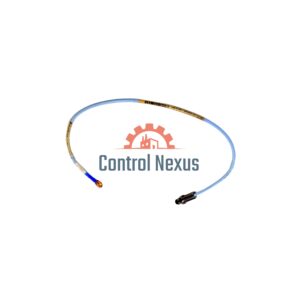

3300 NSv Proximity Probe – 330903‑00‑02‑10‑01‑00

Performance Specs

• Brand: Bently Nevada
• Model: 3300 NSv Probe
• Part Number: 330903‑00‑02‑10‑01‑00
• Measurement Range: 0.25–1.75 mm (10–70 mils)
• Linear Span: 1.5 mm (60 mils)
• Scale Factor: 7.87 V/mm ±20%
• Output Signal: –1 to –13 V DC
• Freq. Response: 0–10 kHz (≤305 m cable)
• Accuracy (DSL): ±0.06 mm (±2.3 mils)
• Temp Range: –52 °C to +177 °C
• Cable: 75 Ω FEP coax, 1.0 m
• Warranty: 12 months

Suffix Code Explained

• -02: 20 mm case length
• -10: 1.0 m standard cable
• -01: ClickLoc connector + protector
• -00: No agency approval

Mounting

• Thread: M8×1, torque max 0.56 N·m.
• Gap: 1.0 mm from target.
• Cable: shielded triad, 16–24 AWG, ≤305 m.
• Bend radius ≥ 25.4 mm.

Plug & Play

Direct swap into any 3300 RAM system. Works with 3300 XL monitors without changes.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
