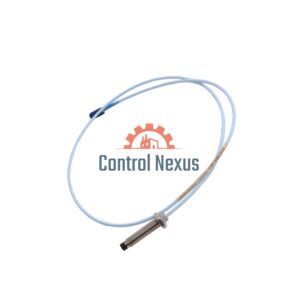

Bently Nevada | 330903-00-03-50-01-00 New NSv Probe

3300 NSv Proximity Probe 330903-00-03-50-01-00 Overview

Model Suffix Breakdown

330903 – Probe series
-00 – Unthreaded length: 0 mm
-03 – Case length: 30 mm
-50 – Total cable length: 5.0 m (16.4 ft)
-01 – ClickLoc connector, standard cable
-00 – No agency approval required

Technical Specifications

• Linear range: 0.25 – 1.75 mm (10 – 70 mils)
• Incremental scale factor: 7.87 V/mm ±20%
• Deviation from straight line: < ±0.06 mm
• Frequency response: 0 – 10 kHz (–3 dB, up to 305 m wiring)
• Probe tip material: PPS polymer
• Case material: 304 SS
• Cable: 75 Ω FEP‑insulated, coaxial
• DC resistance: 5.3 Ω ±0.7 Ω over 5 m
• New added data:
  • Repeatability: ±0.02 mm over 1 mm gap
  • SNR: > 80 dB at 1 kHz
  • Dynamic range: 80 dB
  • Humidity range: 0 – 100% RH
