Bently Nevada 330903-00-04-50-11-00 | New NSv Probe

Description

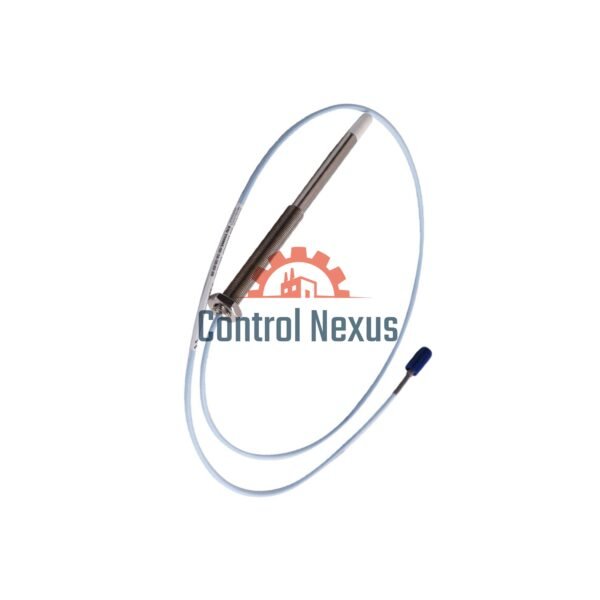

330903‑00‑04‑50‑11‑00 Bently Nevada 3300 NSv Proximity Probe Overview

Key Specifications

• Linear Range: 0.25 to 1.75 mm (10 to 70 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm ±20%
• Frequency Response: 0 to 10 kHz, up to 305 m wiring
• Operating Temperature: –52 °C to +177 °C
• Maximum Vibration Tolerance: 100 g peak
• Weight (with cable): 0.15 kg
• Calibration Accuracy: ±0.02 mm at nominal gap

Ordering Suffix Breakdown

Full part number: 330903‑00‑04‑50‑11‑00
-00- Unthreaded length: 0 mm
-04- Case length: 40 mm
-50- Total cable length: 5.0 m (16.4 ft)
-11- Miniature ClickLoc connector with protector, FluidLoc cable
-00 No agency approval required

Installation & Compatibility

Finger‑tight torque recommendation: 0.56 N·m
Maximum probe case thread engagement: 12 mm on M8×1 threads.
Compatible with all 3300 XL NSv Proximitor monitors and field wiring up to 1,000 ft of shielded triad cable.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
