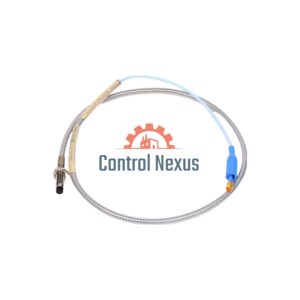

Bently Nevada 330904-00-15-70-11-05 Armored Proximity Probe

Description

330904-00-15-70-11-05 Probe Overview

Key Specifications

• Thread & Armor: M8×1 thread with 0.8 mm SST armor
• Probe Length: 7.0 m (23.0 ft)
• Cable Type: ClickLoc miniature coaxial with FluidLoc™ cable
• Field Wiring Range: 0.25–0.75 mm² (18–23 AWG) using triad shielded cable
• Maximum Field Length: 305 m (1,000 ft)
• Linear Range: 0.25–1.75 mm (10–70 mils)
• Scale Factor (ISF): 7.87 V/mm ±20%
• Frequency Response: 0–10 kHz with ±3 dB at 305 m wiring
• Temperature Operating: –52 °C to +177 °C
• Weight: 45 g (probe head only)
• Armor Thickness: 0.8 mm
• Bend Life: >200,000 cycles at 25 mm radius

Enhanced Performance Features

• Chemical Resistance: Compatible with pH 1–13 environments (30% improvement over RAM series)
• EMI Immunity: ≥20 V/m between 80–1,000 MHz
• Response Time: <0.1 ms to 90% step change
• Probe Tip Seal: Viton® O-ring rated to 5 bar differential pressure
• Connector Torque: Recommended 5.1 N·m; Maximum 7.3 N·m
• Warranty: 1 year factory warranty

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
