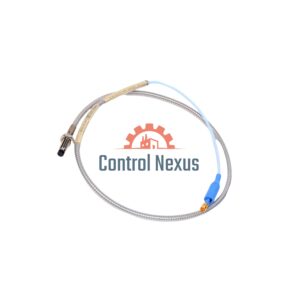

Bently Nevada 330904-08-10-05-01-05 – Proximity Probe

Description

Bently Nevada 330904-08-10-05-01-05 | 3300 NSv Proximity Probe

Suffix Explained

330904 – 3300 NSv probe, armored M8×1
08 – 3/8-24 to 1/2 NPT, 1″ hex stud
10 – 100 mm case length
05 – 0.5 m cable
01 – ClickLoc connector, standard cable
05 – CSA, ATEX, IECEx

Technical Highlights

Range: 0.25–1.75 mm
Output: 7.87 V/mm ±20%
Accuracy: ±0.06 mm
Bandwidth: DC–10 kHz over 305 m cable
Temp: –52 °C to +177 °C
Tip: PPS
Case: AISI 304 SST
Min Bend Radius: 25.4 mm

Quick Setup

Torque: finger tight to 0.56 N·m; thread depth 12 mm max; use flat targets ≥ 13 mm dia; swap in legacy 3300 RAM probes.

Compatibility & Benefits

Interchangeable with 3300 RAM series; superior chemical resistance; enhanced side-view performance vs. 3000-series.

Certifications

CSA • ATEX • IECEx approved for hazardous zones

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
