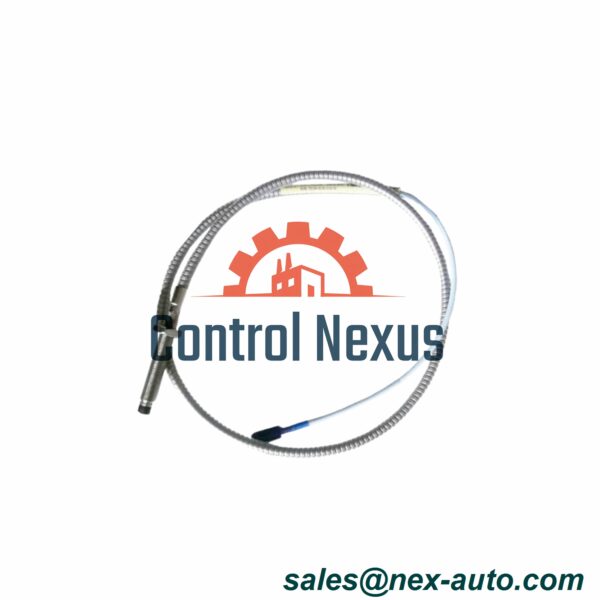

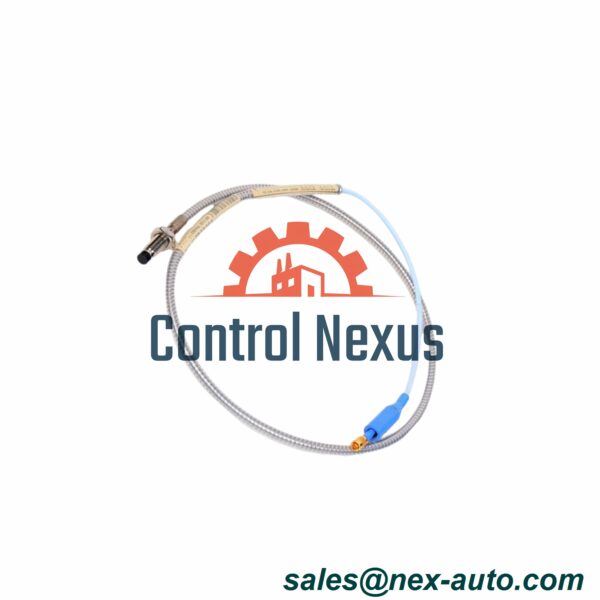

Bently Nevada 330904-08-15-05-11-00 – NSv Proximity Probe

Description

Model Details

Brand: Bently Nevada

Model: 3300 NSv

Part Number: 330904-08-15-05-11-00

Suffix Information

-08 — 80 mm Unthreaded Length

-15 — 150 mm Overall Case Length

-05 — 0.5 Meter Cable Length

-11 — Miniature Coaxial ClickLoc Connector with Protector, FluidLoc Cable

-00 — No Agency Approval Required

Technical Specifications

Measurement Range: 1.5 mm (60 mils)

Recommended Gap: 1.0 mm (40 mils)

Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5% / -20%

Linearity Deviation: Less than ±0.06 mm (±2.3 mils)

Frequency Response: 0 to 10 kHz (typical, with field wiring up to 305 m)

Operating Temperature: -52°C to +177°C (-62°F to +351°F)

Storage Temperature: -52°C to +177°C (-62°F to +351°F)

Output Signal: Voltage Proportional to Displacement

Probe Materials

Tip: Polyphenylene Sulfide (PPS)

Case: AISI 304 Stainless Steel

Cable: 75 Ω Coaxial, FEP Insulated, Fluoroethylene Propylene with Stainless Steel Armor

Installation Guide

Probe Thread Size: M8x1

Max Thread Engagement: 12 mm

Torque: 5.1 N•m (Recommended), Max 7.3 N•m

Minimum Bend Radius: 25.4 mm (1 in)

Recommended Gap Setting: 1.0 mm (40 mils)

Electrical Characteristics

Probe DC Resistance: 4.0 ± 0.5 Ω (for 0.5 m length)

Extension Cable Resistance: Center 0.220 Ω/m, Shield 0.066 Ω/m

Extension Cable Capacitance: 69.9 pF/m (typical)

Field Wiring: 16 to 24 AWG recommended, shielded triad cable

Max Field Wiring Length: 305 m (1000 ft)

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
