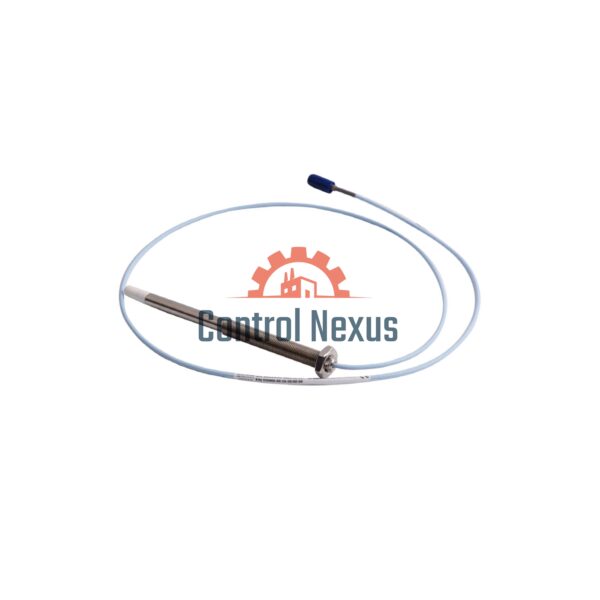

Bently Nevada 330905-08-10-10-02-05 3300 NSv Proximity Probes

Description

Bently Nevada 330905-08-10-10-02-05 | 3300 NSv Proximity Probe

Key Features

Brand: Bently Nevada

Model: 330905-08-10-10-02-05

Compact design for narrow mounting areas

Enhanced chemical resistance vs. older RAM series

Accurate side-view measurement for dynamic motion

Compatible with 3300 RAM proximity systems

ClickLoc miniature coaxial connector

Suffix Breakdown

-08: 80 mm Unthreaded Length

-10: 100 mm Overall Case Length

10: 1.0 m Total Cable Length

02: ClickLoc Coaxial Connector

05: Multiple Agency Approvals

Technical Specifications

Measurement Range: 0.25 mm to 1.75 mm (10 to 70 mils)

Linear Range: 1.5 mm (60 mils)

Recommended Gap: 1.0 mm (40 mils)

Sensitivity: 7.87 V/mm ±12.5%/-20%

Frequency Response: 0 to 10 kHz ±3 dB

Operating Temp: -52°C to +177°C (-62°F to +351°F)

Storage Temp: -52°C to +177°C (-62°F to +351°F)

Probe Material: AISI 304 SST & PPS tip

Probe Resistance: 4.2 ± 0.5 Ω @ 1.0 m

Cable Type: 75 Ω coaxial, FEP insulated

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
