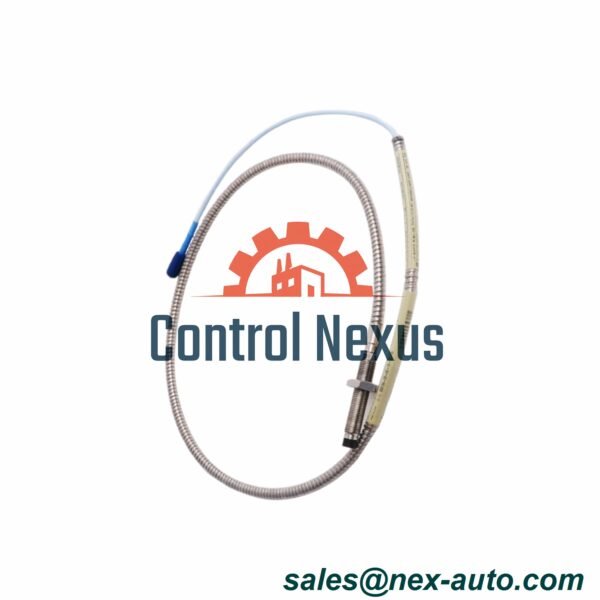

Bently Nevada 330909-00-60-70-02-00 | 3300 NSv Armored Probe

330909‑00‑60‑70‑02‑00 NSv Proximity Probe Overview

Suffix Code Breakdown

• ‑00 = Unthreaded length: 0.0 in
• ‑60 = Overall case length: 6.0 in
• ‑70 = Probe cable length: 7.0 m (23.0 ft)
• ‑02 = Miniature coaxial ClickLoc connector, standard cable
• ‑00 = No agency approval required

Core Technical Specifications

• Case Material: AISI 304 stainless steel
• Tip Material: Polyphenylene sulfide (PPS)
• Cable Type: 75 Ω coaxial, FEP insulated
• Resistance at 7.0 m: 5.9 Ω ± 0.9 Ω
• Connector Torque Max: 33.9 N·m
• Thread Torque Max (first 3 threads): 22.6 N·m
• Thread Engagement: 0.563 in max
• Weight: 14–150 g (0.5–5.3 oz)
• Operating Temp: –52 °C to +177 °C
• Storage Temp: –52 °C to +177 °C
• Shelf Life: 1 year
• Sealing: Viton O-ring for pressure isolation
• Frequency Range: 0–10 kHz (new)
• Shock Resistance: 100 g for 11 ms (new)
• Dielectric Strength: 1500 V RMS (new)
• Calibration Accuracy: ± 2 % FS (new)
• Ingress Protection: IP66 rated (new)
