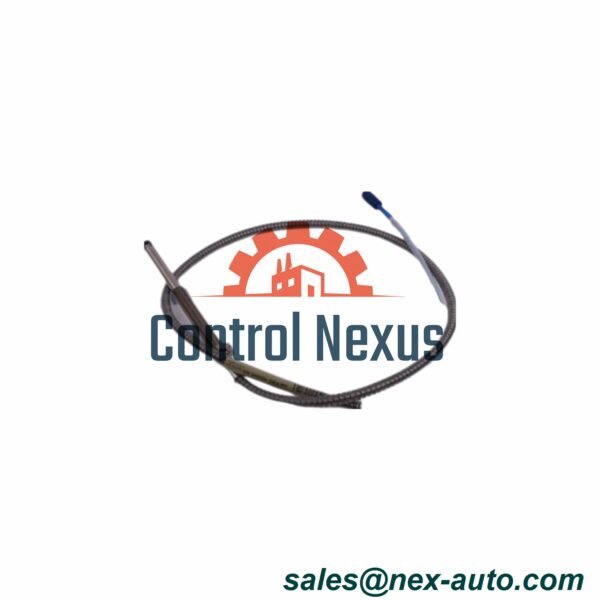

Bently Nevada 3300 NSv Proximity Probe

Model: 330910-03-20-50-11-00

Product Details:

Base Model: 330905 – 3300 NSv Probe, M10X1 thread, with stainless steel armor.

Unthreaded Length: 30 mm (must be at least 20 mm less than case length).

Case Length: 200 mm.

Cable Length: 5.0 meters (16.4 feet).

Connector: Miniature coaxial ClickLoc with connector protector and FluidLoc cable.

Approval Option: -00 (Not required).

Electrical Data:

DC Resistance (5.0 m length): 5.3 ± 0.7 ohms.

Cable Type: 75 Ω coaxial, FEP-insulated.

Mechanical Information:

Tip Material: PPS (Polyphenylene sulfide).

Case Material: AISI 304 stainless steel.

Minimum Bend Radius: 25.4 mm (1.0 inch).

Weight Range: 14 to 150 g (0.5 to 5.3 oz).

Thread Type: M10X1.

Max Thread Engagement: 15 mm.

Torque Settings:

Case Torque Max: 33.9 N·m (300 in·lb).

Case Torque Recommended: 11.3 N·m (100 in·lb).

Connector Torque Max: 0.56 N·m (5 in·lb).

Temperature Limits:

Operating Temperature: -52°C to +177°C (-62°F to +351°F).

Storage Temperature: -52°C to +177°C (-62°F to +351°F).

Note: Below -34°C (-30°F) may reduce pressure seal life.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
