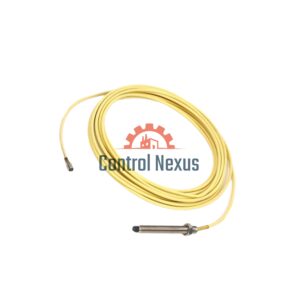

Bently Nevada | 8mm Proximity Probe | 21504-00-40-05-02

Description

Model: 21504-00-40-05-02

Part Number: 21504
Manufacturer: Bently Nevada
Condition: New & Original in factory packaging
Warranty: 1 year

Suffix Configuration:
00 = Unthreaded Length: 0 mm
40 = Case Length: 4.0 in (101.6 mm)
05 = Cable Length: 0.5 m (20 in)
02 = Miniature coaxial male connector

Tip Construction:
Diameter: 8 mm
Thread: 3/8‑24
Case Type: Standard
Lead Armor: None

Electrical Input:
Power Supply: –17.5 V to –26 V DC
Current Draw: 12 mA max

Performance Output:
Calibrated Range: 2.0 mm (80 mils)
Active Sensing Range Begins: 0.25 mm from probe face
Scale Factor: 200 mV/mil (7.87 V/mm), ±4% (system calibrated)
Interchangeability Accuracy: ±9.5%
Linearity: ±0.02 mm typical, ±0.06 mm total including interchangeability
Frequency Response: 0–10 kHz (0–600,000 cpm), –5% at 10 kHz

Download PDF file here:7200 Proximity Transducer Systems
