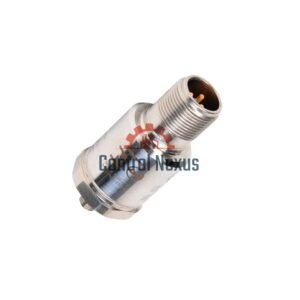

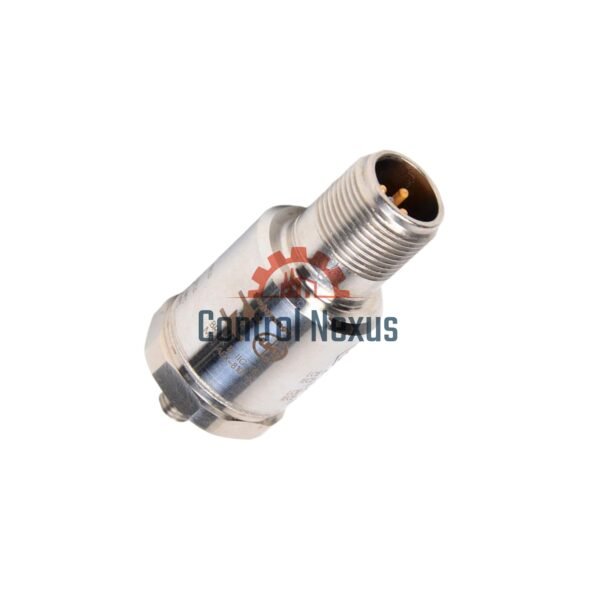

Bently Nevada – Accelerometer 200350-09-00-00

Description

Brand: Bently Nevada

Model: 200350-09-00-00

Type: 200350 Accelerometer

Made in: USA

Certificate: COO available if needed

Mounting Stud: 09 = No stud

Sensitivity: 100 mV/g ± 20% (10.2 mV/m/s² ± 20%)

Agency Approvals: 00 = None

Hex Size: 11/16 inch (1.8 cm)

Height: 1.65 inch (4.24 cm)

Weight: 0.051 kg

Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz)

Max Range: ±50 g

Transverse Sensitivity: ≤7%

Linearity: ±1%

Resonant Frequency: 1500 kcpm (25 kHz)

Noise (1-10 kHz): 350 μg (3,434 μm/s²)

Bias Voltage: 8 to 12 VDC

Excitation Voltage: 18 to 28 VDC

Excitation Current: 2 to 20 mA

Settling Time: 2 seconds

Output Impedance: <150 ohms

Discharge Time: ≥0.3 seconds

Electrical Isolation: >10⁸ ohms

Temperature Range: -65°F to +250°F (-54°C to +121°C)

Shock Rating: 5,000 g

Download PDF file here:200350 and 200355 Accelerometers
