Bently Nevada | Armored Probe 330104-00-08-50-01-05

Description

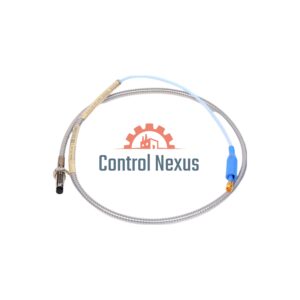

Bently Nevada 8mm Long-Range Sensor

Core Function

Tracks machine vibrations in harsh areas. Built with stainless steel body and heat-resistant PPS tip. Made for AISI 4140 steel targets.

Key Specs

Brand: Bently Nevada
Full Code: 330104-00-08-50-01-05
Code Breakdown:
• 00 = 0mm smooth section
• 08 = 80mm case length
• 50 = 5m cable (16.4ft)
• 01 = ClickLoc plug with cover
• 05 = CSA/ATEX/IECEx certified

Works At: 1.27mm gap
Accuracy: ±0.50Ω
Signal: 50Ω output
Temp: -55°C to +232°C

Install Notes

Use M10x1 screw. Requires -17.5V to -26V power. Only works with 5m Proximitor sensor.

Compatible Systems

• Bently 3300 XL 8mm series
• Explosion-safe barriers (Drawing 141092)
• Non-spark wiring (Drawing 140979)

Safety Approvals

Certified for:
• Zone 0 explosive areas
• Hazardous locations (Class I/II/III)

Package Contents

1x 5m sensor probe
1x Heavy-duty cable
1x Protected ClickLoc connector
Setup guide

Warranty

1-year coverage for defects.

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
