Bently Nevada – ETR Proximity Probe 330195-02-12-05-CN

Description

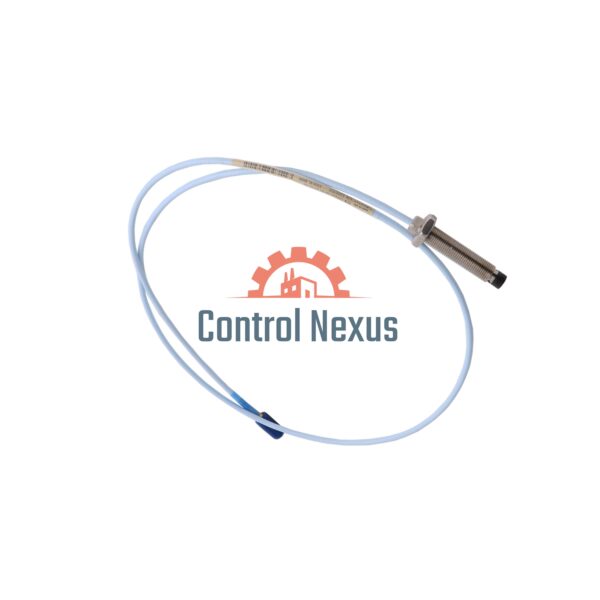

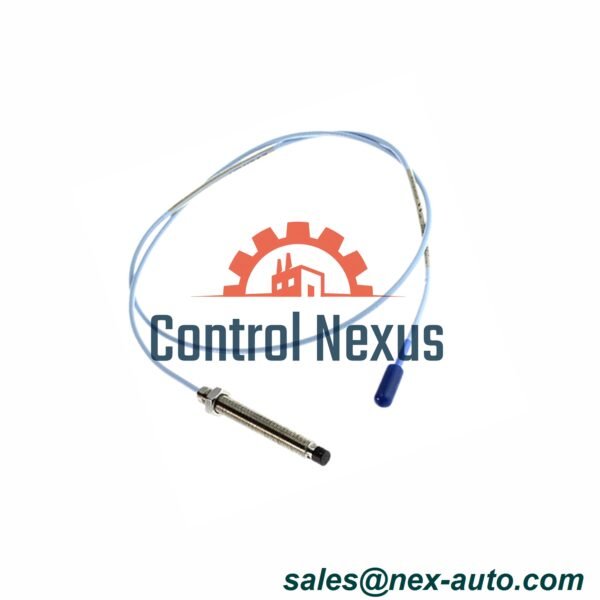

Bently Nevada 3300 XL 8mm Reverse Mount Proximity Probe

Complete Technical Specifications

Brand: Bently Nevada

Full Model: 330195-02-12-05-CN

– 02: Thread configuration (3/8-24 UNF)

– 12: Probe body specifications

– 05: 0.5m cable length

– CN: China-specific certification

Operating Temp: -52°C to +177°C (Standard)

Extended Temp: Tip: -52°C to +218°C | Cable: -51°C to +260°C

Resistance: 7.45 ± 0.50 Ω (Center to Outer Conductor)

Humidity: <3% ASF change at 93% RH (56 days)

Material: PPS tip | AISI 303/304 stainless steel body

Max Thread Engagement: 0.563 inch

Pressure Seal: Viton® O-ring design

Certifications

Meets IEC 68-2-3 standards. China-specific (CN) agency approval included.

Package Includes

• 8mm proximity probe
• Cable and connector
• Product documentation
• 1-year manufacturer warranty

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
