Bently Nevada New Dual NSv Probe | 330908-12-18-10-02-05

Description

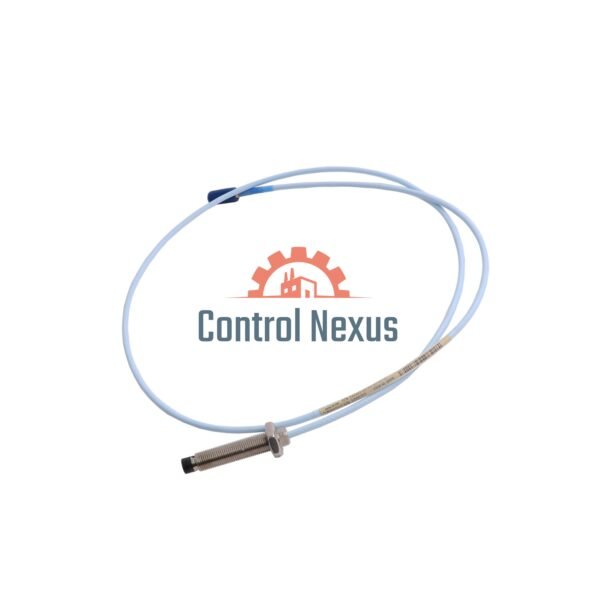

330908-12-18-10-02-05 3300 NSv Proximity Probes

Designed for reliable industrial machine monitoring, this 3300 NSv probe measures shaft movement without contact. Below are key details for easy understanding.

Model Details & Key Options

Full Model: 330908-12-18-10-02-05

Base Probe: 330908 (3/8-24 UNF thread, no armor)
Unthreaded Length: 12 (1.2 inches)
Case Length: 18 (1.8 inches)
Total Length: 10 (1.0 meter / 39 inches)
Connector: 02 (small coaxial ClickLoc, standard cable)
Approvals: 05 (multiple agency certifications)

Materials & Build Quality

Case: AISI304 Stainless Steel (resists rust, strong for rough use)
Tip: Polyphenylene Sulfide (PPS) (works well in high heat, smooth surface)
Cable: 75Ω coaxial with FEP insulation. Available lengths: 0.5m, 1m, 5m, 7m (keeps signals clear)

Electrical & Mechanical Specs

DC Resistance (1.0m): 4.2 ± 0.5 ohms (from center to outer wire)
Torque Limits:

Max for connectors: 33.9 N·m (300 in·lbs)
Best use: 11.3 N·m (100 in·lbs)
Thread Fit (3/8-24): 0.563 inches (stays tight when installed)
Frequency Range: 0-8kHz (good for fast vibration checks)
Cable Strength: 330N (75 lbs) (stays connected under pull)

Environment & Safety

Works & Stores: -52°C to +177°C (-62°F to +351°F)
Below -34°C (-30°F) for long time may break seal (Viton O-ring). Seals pressure but not tested before shipping. Weight: 14-150g (0.5-5.3 oz) (light and easy to install)

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
