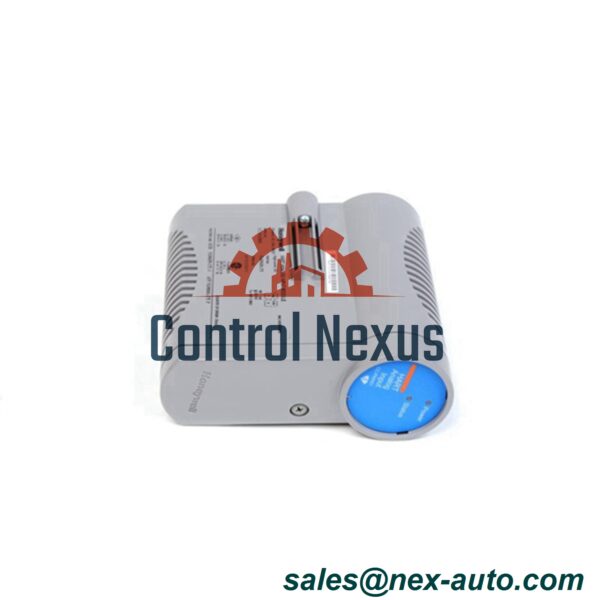

CC-PAIM01 51405045-175 | Honeywell Low-Level Analog Mux Module

Description

CC-PAIM01 LLMUX I/O Module

Advanced Temperature Monitoring Solution

Optimize industrial processes with 64-channel precision temperature measurement. Engineered for Honeywell PMIO LLMUX FTA systems, this module delivers 1-second PV scanning across all channels with ±0.05% gain error accuracy. Supports RTDs (Pt100, Ni120, Cu10) and thermocouples (J, K, E, B, R, S types) across extreme ranges from -230°C to +1820°C.

Performance Highlights

• Isolation Protection: Triple-layer isolation (250V AC/DC channel-to-channel, 120dB CMRR)
• Surge Resilience: 2kV line-to-ground protection (EN 61000-4-5 compliant)
• Cold Junction Accuracy: ±1.0°C from 0-50°C, ±1.5°C at -20-60°C
• Diagnostic Features: Open sensor detection (≥1500Ω trip threshold) with 15Ω max RTD lead resistance

Extended Capabilities

• Cable Reach: 1000 ft connectivity using 16AWG twisted pairs
• Environmental Rating: Operates at -40°C to +85°C with 500ppm/yr long-term drift
• Power Efficiency: 1mA excitation current for RTD sensors
• Compact Design: 12.1″L x 4.9″W x 2.5″H (307 x 124 x 63.5mm)
• Weight:0.35kg
