GE Fanuc Emerson IC694MDL645 Voltage Output Module

Description

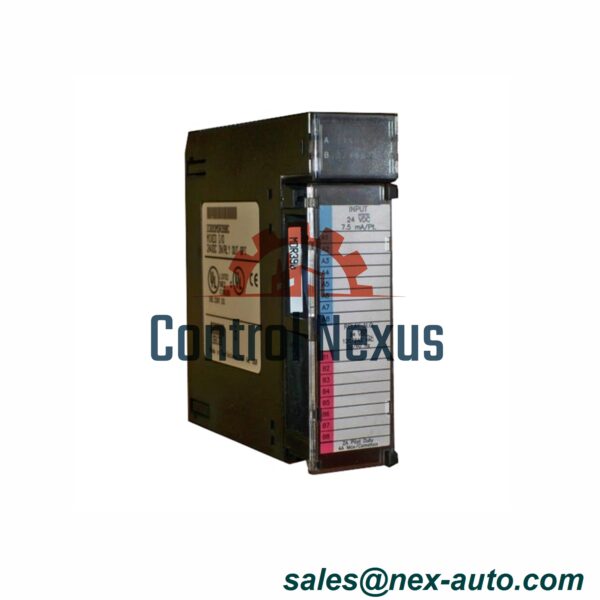

GE Fanuc IC694MDL645 Discrete Input Module

Model Suffix Tree

• IC694MDL645
  • Standard
  • HT (high‐temp)
  • CC (conformal‐coated)

Technical Parameters

• Rated voltage: 24 V DC
• Input range: 0–30 V DC
• Nominal voltage: 24 V DC
• Input current: 7 mA per channel
• On‑state voltage: 11.5–30 V DC
• Off‑state voltage: 0–5 V DC
• On‑state current: 3.2 mA min
• Off‑state current: 1.1 mA max
• Response time: 7 ms typical
• Power use:
  • 5 V bus: 80 mA
  • 24 V bus: 125 mA
• Isolation:
  • Field‐to‐backplane: 250 VAC
  • Frame‐to‐ground: 1500 VAC for 1 min
• Work temp: 0–60 °C
• Store temp: –40–85 °C
• Humidity: 5–95 % non‐condensing
• Vibration: 5 g @ 10–500 Hz
• Shock: 15 g @ 11 ms
