Housing Assembly Bently Nevada | 21022-30-10-017-03

Description

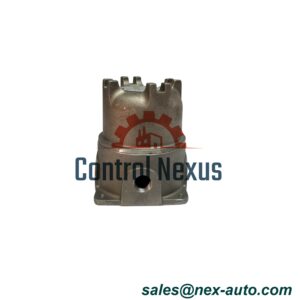

21022-30-10-017-03 Dual Axial Probe Housing Assembly

Made in U.S.A.

Model Suffix Structure

• 21022
  • 30 = 3300 XL 11 mm probe, Multiple approvals
  • 10 = 1.0 metre (39 in) cable
  • 017 = 1.7 in probe penetration
  • 03 = Two cable seal grips kit, includes grommets and NPT reducers

Technical Parameters

• Range: ±0.10 in (±2.5 mm)
• Resolution: 0.0001 in (0.003 mm)
• Accuracy: ±0.0005 in (±0.013 mm)
• Output Signal: 4–20 mA
• Supply Voltage: 18–30 V DC
• Operating Temp: -40 to 200 °F (-40 to 93 °C)
• Housing Material: Aluminum alloy, sand cast
• Sleeve Material: 304 stainless steel

Installation Guide

• Mount enclosure on machine case with four screws.
• Fit probes through two 3/4-in NPT holes.
• Adjust probe gaps via removable cover.
• Use torque ≤10 ft-lb on fittings.

Compatibility

• Works with Bently Nevada 3300 XL monitors.
• Meets API 670 standard.
• Ideal for axial thrust sensors in turbines and pumps.

Packaging List

• Dual axial probe housing
• Two proximity probes installed
• Sleeve/adapter assemblies
• Cable seal grips kit
• Instruction sheet
