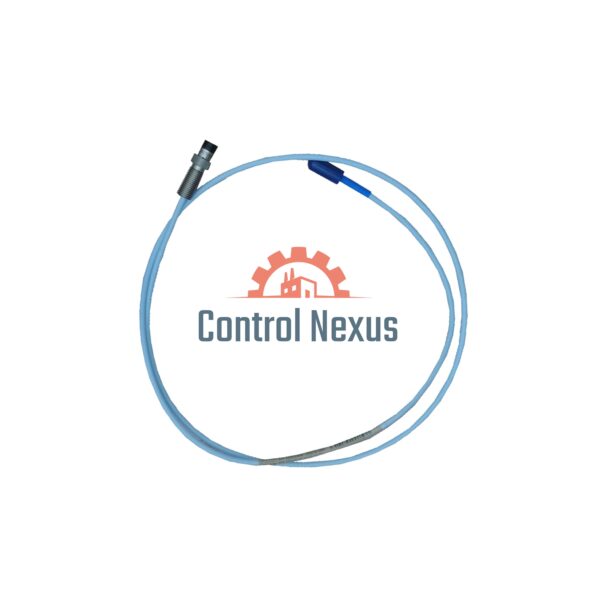

New 3300 NSv Probe | Bently Nevada | 330903-00-04-50-11-05

Description

Model Breakdown

330903 – 3300 NSv Probe, M8x1 thread
00 – 0 mm Unthreaded Length
04 – 40 mm Overall Case Length
50 – 5.0 m Total Probe Length
11 – Miniature ClickLoc Connector with protector and FluidLoc cable
05 – Multiple Global Certifications

Key Technical Data

Brand: Bently Nevada
Model: 330903-00-04-50-11-05
Linear Range: 1.5 mm (60 mils)
Measurement Gap: 0.25 mm to 1.75 mm
Gap Setting (Recommended): 1.0 mm (40 mils)
Scale Factor (ISF): 7.87 V/mm ±12.5%/-20%
Deviation (DSL): Less than ±0.06 mm
Frequency Response: 0 to 10 kHz typical
Operating Temp: -52°C to +177°C
Storage Temp: -52°C to +177°C
Target Size (Flat): Minimum 8.9 mm; Recommended ≥13 mm

Electrical Performance

Probe Resistance (5.0 m): 5.3 Ω ± 0.7 Ω
Cable Resistance: Center 0.220 Ω/m, Shield 0.066 Ω/m
Cable Capacitance: 69.9 pF/m typical
Wiring Recommendation: 0.2 to 1.5 mm² shielded triad, up to 305 m length

Materials & Design

Tip Material: Polyphenylene Sulfide (PPS)
Case Material: AISI 304 Stainless Steel
Cable Type: 75 Ω coaxial, FEP insulated, with FluidLoc sealing
Minimum Bend Radius: 25.4 mm (1.0 in)

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
