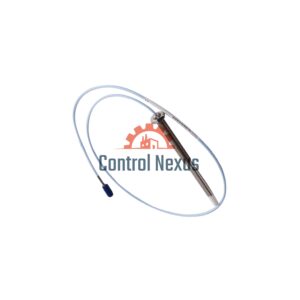

New 3300 NSv Probe Bently Nevada | 330903-00-05-50-12-00

Description

330903-00-05-50-12-00 Key Specifications & Suffix Breakdown

Model: 330903

Thread Type: M8X1 (no armor)
Unthreaded Length: 00 mm
Overall Case Length: 50 mm
Total Length: 5.0 meters (16.4 feet)
Connector: Miniature coaxial ClickLoc with FluidLoc cable
Agency Approval: Not required

Technical Highlights

Linear Range: 0.25-1.75 mm (10-70 mils), ideal for 1.0 mm (40 mils) gap setting
Accuracy: ±0.06 mm (±2.3 mils) deviation from best fit line
Output: 7.87 V/mm (200 mV/mil) scale factor (±12.5%/-20% tolerance)
Frequency Response: 0-10 kHz with up to 305 meters field wiring
Temperature Range: -52°C to +177°C (-62°F to +351°F) for operation & storage
Cable Resistance: 5.3 ± 0.7 ohms (probe); 0.220 Ω/m (center conductor)

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
