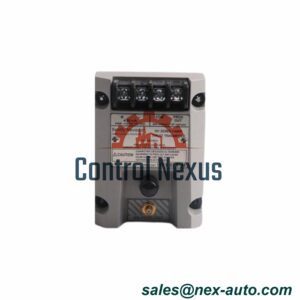

Vibration Transmitter | Bently Nevada | 990-04-50-02-01

Description

Technical Specifications

Brand: Bently Nevada

Model: 990-04-50-02-01

Full-scale Option (04): 0-4 mils pp (0–100 μm pp)

System Length (50): 5.0 meters (16.4 ft)

Mounting Option (02): Bulkhead screws

Agency Approval (01): CSA Division 2

Input: Accepts 3300 NSv Proximity Probe and extension cable

Power Supply: +12 to +35 Vdc

Output Signal: 4–20 mA DC (2-wire)

Loop Accuracy: ±1.5% of full-scale

Current Limit: 23 mA typical

Max Loop Resistance: 1000 Ω at 35 Vdc

Frequency Response: 5 Hz to 6,000 Hz (+0, -3 dB)

Minimum Target Size: 9.5 mm (0.375 in) diameter

Weight: 0.43 kg (0.9 lbm)

Probe Gap Range: 0.5–1.75 mm (20–55 mils)

Signal Defeat: Drops to less than 3.6 mA in under 100 µs during NOT OK condition

Download PDF file here:990 Vibration Transmitter Datasheet
